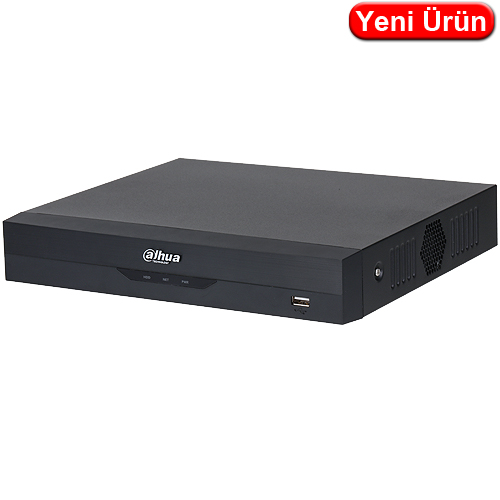

DAHUA (XVR5104HS-5M-I3) 4 KANAL 1080P 1x6TB 5MP HDCVI DESTEĞİ 1XHDMI 1XVGA 2XUSB 1XRJ45 XVR KAYIT

DAHUA (XVR5104HS-5M-I3) 4 KANAL 1080P 1x6TB 5MP HDCVI DESTEĞİ 1XHDMI 1XVGA 2XUSB 1XRJ45 XVR KAYIT

Marka Dahua

Teknik Özellikler

Kategori DVR Kayıt Cihazı
HDD 1x 6 TB HDD
Kanal Sayısı 4
Acusense Var
HDMI Bağlantısı 1
Kanal Decode 1080p
Video Girişi HDCVI
IP Video Giriş 2 kanal
Ses Giriş ve Çıkış Var
Genel Stok 10
Fiyat
Satış Fiyatı $ 76,993.789,14 TL€ 68,63 + KDV
Havale Fiyatı $ 74,683.675,47 TL€ 66,57 + KDV

10 adet stokta

XVR5104HS-5M-I3
4CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
> 1-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
> 4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
> 1-channel face recognition for analog channels which supports face comparison.
> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.
> IoT and POS capabilities.
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Quick Pick
QuickPick 2.0 AI by Recorder (Number of Channels)
1 channel
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Mode: 2 channels, 10 IVS rules for each channel
General Mode: 4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes
6 attributes
Face Detection Performance of AI by Recorder (Number of Channels)
1 channel (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity
Up to 10 face databases with 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)
1 channel
SMD Plus
SMD Plus by Recorder
4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera
6 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder
4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
Scene Changing
Scene Changing by Recorder
1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder
1 channel
Audio and Video
Analog Camera Input
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 6 channels of IPC access
2 IP channels by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.
Encoding Capacity
Encode Enhancement disabled:
Main stream:
Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1 fps–25/30 fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
5 MP@(1 fps-12 fps); 5M-N/4M-N/1080p@(1 fps-25 fps); 1080N/720p/960H/D1/CIF@(1 fps-30 fps);
Sub stream: D1/CIF@(1 fps-15 fps);
It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N.
*When Encode Enhancement is enabled,Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser
Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode
General; alarm; motion detection; intelligent; POS
Recording Playback
1/4
Backup Method
USB device and network
Playback Mode
Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm
Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm
Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio Input
1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
Disk Interface
1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
RS-485
1
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 1.5 A
Power Consumption
<5 W (without HDD)
Net Weight
0.84 kg (1.85 lb)
Gross Weight
1.37 kg (3.02 lb)
Product Dimensions
260.0 mm × 237.8 mm × 47.6 mm (10.24″ × 9.36″ × 1.87″) (W × D × H)
Packaging Dimensions
344.0 mm × 89.0 mm × 287.0 mm (13.54″ × 3.50″ × 11.30″) (W × D × H)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Installation
Desktop
Certifications
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
