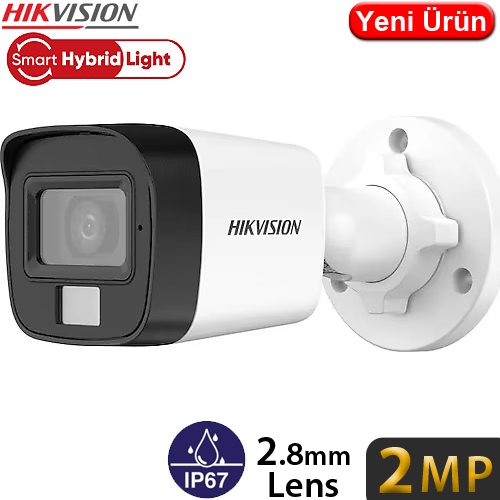

2MP Smart Hybrid Light Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- Smart-Hybrid light, optimize your security with flexible lighting options
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- Camera
- Image Sensor : 2 MP CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night : ICR
- Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
- Signal System : PAL/NTSC
- Lens
- Lens Type : 2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV : 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
- Lens Mount : M12
- Illuminator
- Supplement Light Type : Smart,IR,White Light
- Supplement Light Range : IR : Up to 20 m
White Light : Up to 20 m
- Image
- Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
- Image Settings : Brightness, Sharpness, Smart IR
- Frame Rate : TVI: 1080p @ 30 fps, 1080p @ 25 fps
AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps
CVBS: PAL/NTSC
- Day/Night Mode : Auto/Color
- Wide Dynamic Range (WDR) : Digital WDR
- Image Enhancement : DWDR/BLC/HLC/Global
- White Balance : Auto/Manual
- AGC : Yes
- Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
- General
- Material : Plastic
- Dimension : Ø70 mm × 138.8 mm (Ø2.76″ x 5.46″)
- Max. : 150 g (0.33 lb.)
- Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
- Communication : HIKVISION-C
- Language : English
- Power Supply : 12 VDC ± 25%, Max. 3.2 W
*You are recommended to use one power adapter to supply the power for one camera.
- Approval
- Protection : IP67
