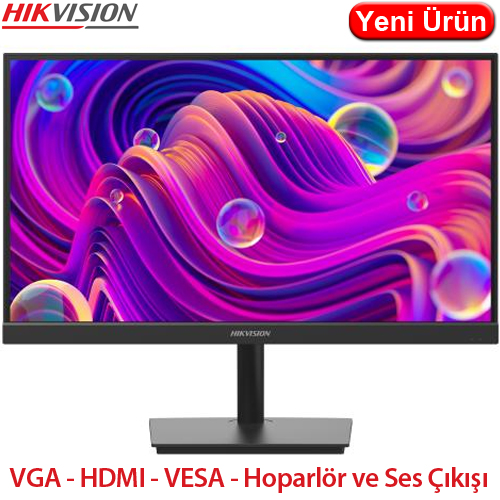

DS-D5024F2-AP2
23.8 inch FHD 100Hz IPS Monitor
- 100 Hz refresh rate, more fluid and life-like video.
- IPS technology for wide, 178° ultra-wide view screen.
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS FHD (1920 × 1080) display.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
- Display
- Screen Size : 23.8 inch , 60.4 cm
- Active Display Area : 527.04 (H) mm × 296.46 (V) mm, 15.63 dm²
- Resolution : 1920 × 1080
- Backlight : E-LED
- Pixel Pitch : 0.2745 (H) mm × 0.2745 (V) mm
- Brightness : 250 cd/m²
- Viewing Angle : 178° (H) / 178° (V)
- Color Depth : 16.78 M
- Contrast Ratio : 1000 : 1
- Response Time : 14ms
- Refresh Rate : Typ. 60 Hz , Max. 100Hz
- Haze : Haze 25%,3H
- Reliability : 7 × 24 H
- Color Gamut : 72% NTSC
- Interface
- Video & Audio Input : HDMI 1.4 × 1, VGA × 1
- Video & Audio Output : Audio Out × 1
- Data Transmission Interface : None
- Control Interface : None
- Power
- Power Supply : DC 12V, 2.0A
- Power Consumption : ≤ 24 W
- Standby Consumption : ≤ 0.5 W
- Working Environment
- Working Temperature : 0? to 40 ? (32 ? to 104 ?)
- Working Humidity : 20% to 90% RH (Non-Condensing)
- Storage Temperature : -20 ? to 60 ? (-4 ? to 140 ?)
- Storage Humidity : 10% to 90% RH (Non-Condensing)
- General
- Casing Material : Plastic
- VESA75 mm × 75 mm (4 – M4 × 6 mm)
- Bezel Width : 2.0 mm (top/left/right), 23.55 mm (bottom)
- Product Dimensions (W × H × D) : With base: 539.7 (W) mm × 427.33 (H) mm × 185.69(D) mm
21.25 (W) inch × 16.82 (H) inch × 7.31 (D) inch
Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm
21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch
- Package Dimensions (W × H × D) : 611 (W) mm × 405 (H) mm × 118 (D) mm / (24.06(W) × 15.94(H) × 4.65 (D) ) inch
- Standby Time : 600s
- Net Weight : 2.85 ± 0.5 kg
- Gross Weight : 3.85± 0.5 kg
- Packing List : Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- Remarks : The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
