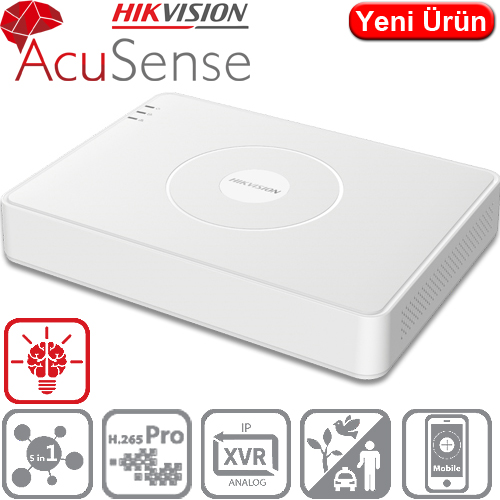

16-ch 1080p Mini 1U H.265 AcuSense DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 6 MP)
- Encoding ability up to 3K/5M Lite @ 12 fps
- Motion Detection 2.0
- Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
- Perimeter Protection
- Line Crossing Detection/Intrusion Detection : 4-ch
- Facial Detection
- Facial Detection and Capture : Face picture detection, face picture search
- Video and Audio
- IP Video Input : 2-ch (up to 18-ch) Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth : 96 Mbps
- HDTVI Input : 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input : 5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS Input : PAL/NTSC
- HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback : 16-ch
- Recording
- Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding ResolutionWhen 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame RateMain stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate : 32 Kbps to 6 Mbps
- Dual-stream : Support
- Stream Type : Video, Video & Audio
- Audio Compression : G.711u
- Audio Bitrate : 64 Kbps
- Network
- Remote Connection : 128
- Total Bandwidth : 128 Mbps
- Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface : 1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
- Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 10 TB capacity for each disk
- USB Interface : Real panel: 2 × USB 2.0
- Alarm In/Out : N/A
- General
- Power Supply : 12 VDC, 2A
- Consumption : ≤ 24W
- Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
- ≤ 1 kg (2.2 lb)
