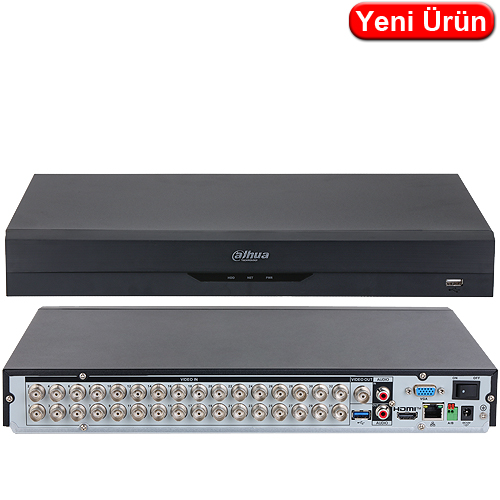

DAHUA (XVR4232AN-5M-I) 32 KANAL 1080P 2x16TB 2MP HDCVI KAM. DESTEKLER 1xHDMI 1xVGA 2xUSB 1xRJ45 XVR

DAHUA (XVR4232AN-5M-I) 32 KANAL 1080P 2x16TB 2MP HDCVI KAM. DESTEKLER 1xHDMI 1xVGA 2xUSB 1xRJ45 XVR

Marka Dahua

Teknik Özellikler

Kategori DVR Kayıt Cihazı
HDD 2x 10 TB HDD
Kanal Sayısı 32
Acusense Yok
HDMI Bağlantısı 1
Kanal Decode 5MP Lite / 1080p
Video Girişi HDCVI
IP Video Giriş 16 ila 32 kanal
Ses Giriş ve Çıkış Var
Genel Stok 6
Fiyat
Satış Fiyatı $ 457,6022.521,24 TL€ 407,92 + KDV
Havale Fiyatı $ 443,8721.845,60 TL€ 395,68 + KDV

6 adet stokta

XVR4232AN-I/T
32CH Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder
* Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
>32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
>32-channel SMD Plus for analog channels or 36-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
>8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
>Supports HDCVI, AHD, TVI, CVBS and IP video input.
>Supports up to 20-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
>Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
>Smart H.265+ and H.265 dual-stream video compression.
  • selector-pcimg
    System
    Main Processor
    Industrial-grade processor
    Operating System
    Embedded Linux
    Operating Interface
    Web; Local GUI
    SMD
    SMD Plus by Recorder
    32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
    SMD by Camera
    36 channels
    Irregular Black Block Masking
    Irregular Black Block Masking by Recorder
    1 channel
    Audio and Video
    Analog Camera Input
    32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
    Camera Input
    1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
    2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
    3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
    IP Camera Input
    Up to 20 channels of IPC access
    4 IP channel by default + 16 channels (analog channels are converted to IP channels)
    Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
    Encoding Capacity
    Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
    Sub stream: CIF@(1 fps–7 fps)
    Dual-stream
    Yes
    Video Bit Rate
    32 kbps–4096 kbps
    Audio Sampling
    8 kHz, 16 bit
    Audio Bit Rate
    64 kbps
    Video Output
    1 HDMI, 1 VGA, 1 CVBS
    HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
    VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    Multi-screen Display
    1/4/8/9/16/25/36
    Third-party Camera Access
    Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
    Compression Standard
    Video Compression
    AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
    Audio Compression
    G.711a; G.711u; PCM
    Network
    Network Protocol
    HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
    Mobile Phone Access
    iOS; Android
    Interoperability
    ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
    Browser
    Chrome; IE; Safari; Edge; Firefox
    Recording Playback
    Record Mode
    General; alarm; motion detection
    Recording Playback
    1/4/9/16
    Backup Method
    USB device and network
    Playback Mode
    Instant playback; general playback; event playback; tag playback; smart playback
    Storage
    Disk Group
    Yes
    Alarm
    General Alarm
    Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
    Anomaly Alarm
    Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
    Intelligent Alarm
    SMD Plus
    Alarm Linkage
    Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
    Ports
    CVBS Output
    1 channel
    Audio Input
    1-channel RCA
    32-channel BNC (Coaxial Audio)
    Audio Output
    1-channel RCA
    Two-way Talk
    Coaxial two-way talk: 32-channel BNC
    Local and network user two-way talk: Shares the same audio input with the first channel
    Disk Interface
    2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
    RS-485
    1
    USB
    2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
    HDMI
    1
    VGA
    1
    Network Port
    1 (10/100/1000 Mbps Ethernet port, RJ-45)
    General
    Power Supply
    12 VDC, 4 A
    Power Consumption
    <12 W (without HDD)
    Net Weight
    1.91 kg (4.21 lb)
    Gross Weight
    3.01 kg (6.64 lb)
    Product Dimensions
    375.0 mm × 289.6 mm × 53.0 mm (14.76″ × 11.40″ × 2.09″) (W × D × H)
    Packaging Dimensions
    427.0 mm × 137.0 mm × 356.0 mm (16.81″ × 5.39″ × 14.01″) (W × D × H)
    Operating Temperature
    –10 °C to +55 °C (+14 °F to +131 °F)
    Storage Temperature
    –20 °C to +60 °C (–4 °F to +140 °F)
    Operating Humidity
    10%–90% (RH), non-condensing
    Installation
    Desktop
    Certifications
    CE-LVD: IEC 62368-1:2014
    CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
