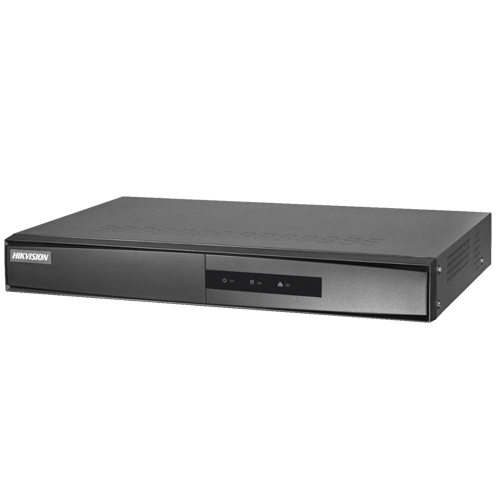

| 8-ch Mini 1U NVR
Up to 8 channel IP cameras can be connected |
| Decoding |
| Live view / Playback resolution : 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding format : H.265+/H.265/ H.264+/H.264 |
| Synchronous playback : 8-ch |
| Capability : 1-ch @ 4 MP / 2-ch @ 1080p |
| Network |
| Incoming bandwidth : 60 Mbps |
| Outgoing bandwidth : 60 Mbps |
| External interface |
| Network interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| USB interface : 2 × USB 2.0 |
| General |
| Power : ≤ 18W |
| Power supply : 12 VDC |
| Working temperature : -10 to +55º C (+14 to +131º F) |
| Working humidity : 10 to 90 % |
| Chassis : 1U chassis |
| Dimensions : (W × D × H)260 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) |
| Consumption : (without hard disk)≤ 10 W |
| Weight : (without hard disk)≤ 1 kg (2.2 lb) |
| Video input |
| IP video input8-ch ,Up to 4 MP resolution |
| Video output |
| Recording resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI/VGA output resolution1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Network management |
| Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Hard disk |
| SATA1 SATA interface |
| CapacityUp to 6TB capacity for each disk |
