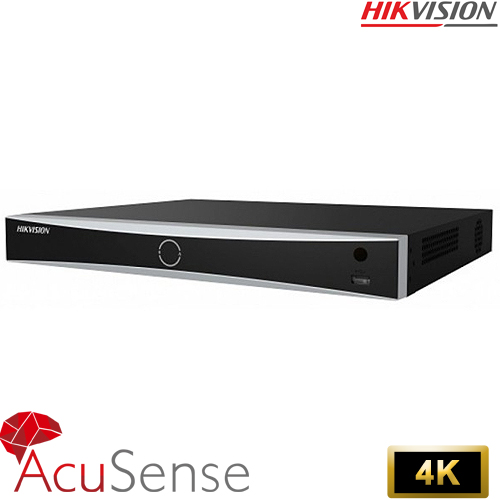

32-ch 1.5U K Series AcuSense 4K NVR
- Up to 32-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
- Facial Recognition
- Facial Detection and Analytics : Face picture comparison, human face capture, face picture search
- Face Picture Library : Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance : 1-ch human face capture
- Face Picture Comparison : 4-ch face picture comparison alarm
- Motion Detection : 2.0
- Human/Vehicle Analysis : 32-ch
- Perimeter Protection
- Human/Vehicle Analysis : Up to 2-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video and Audio
- IP Video Input : 32-ch
- Incoming Bandwidth : 256 Mbps
- Outgoing Bandwidth : 160 Mbps
- HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode : HDMI/VGA independent output
- CVBS Output : N/A
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
- Decoding
- Decoding Format : H.265/H.265+/H.264+/H.264
- Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback : 16-ch
- Decoding Capability : AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- Stream Type : Video, Video & Audio
- Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection : 128
- Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface : 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Auxiliary Interface
- SATA : 4 SATA interfaces
- Capacity : Up to 10 TB capacity for each HDD
- Serial Interface : 2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out : 16/4 (16/9 is optional)
- USB Interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ctrl 12V : N/A (optional to support)
- DC 12V : N/A (optional to support)
- General
- Power Supply : 100 to 240 VAC, 50 to 60Hz
- Consumption : ≤ 20 W (without HDD)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 10 to 90 %
- Dimension (W × D × H) : 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
- Weight : ≤ 5 kg (without HDD, 11 lb.)
- Certification
- FCC : Part 15 Subpart B, ANSI C63.4-2014
- CE : EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
