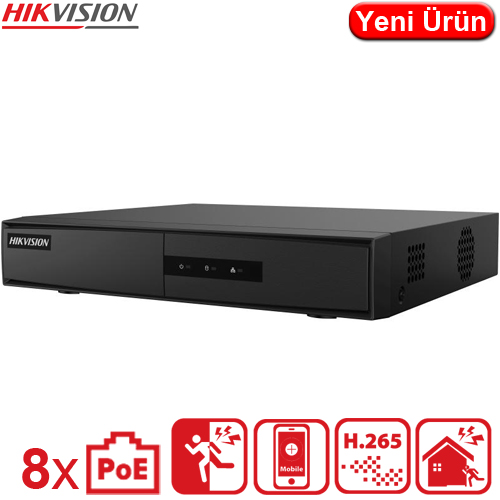

HIKVISION (DS-7108NI-Q1/8P/MUHK) 8 KANAL 1XHDMI,1XVGA, 1 SATA POE

Motion Detection 2.0

• Human/Vehicle Analysis: 4-ch

Video and Audio

• IP Video Input: 8-ch

• Incoming Bandwidth: 60 Mbps

• Outgoing Bandwidth: 60 Mbps

• HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Video Output Mode: HDMI/VGA simultaneous output

Decoding

• Decoding Format: H.265+, H.265, H.264+, H.264

• Recording Resolution: 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback: 8-ch

• Decoding Capability: 1-ch @ 6 MP (30 fps) / 4-ch @ 1080p (30 fps)

• Stream Type: Video, Video & Audio

Network

• Remote Connection: 60

• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

• Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power: ≤ 75 W

• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 1 SATA interface

• Capacity: Up to 6 TB capacity for each disk

• Alarm In/Out: N/A

• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 48 VDC, 1.35 A

• Consumption: ≤ 10 W (without HDD and PoE off)

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity: 10 to 90 %

• Chassis: 1U chassis (Metal)

• Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)

• Weight: ≤ 1 kg (without HDD, 2.2 lb.)
