- Dahili PoE Desteği: 8 adet dahili PoE portu sayesinde kameraları ek adaptör/switch kullanmadan doğrudan NVR üzerinden besler (Toplam 75W PoE bütçesi).
- Kasa Yapısı: /M uzantısı cihazın Metal Kasa yapısına sahip olduğunu ifade eder.
- Kamera Çözünürlük Desteği: 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p kayıt ve canlı izleme desteği.
- Bant Genişliği: 60 Mbps Gelen (Giriş) / 60 Mbps Giden (Çıkış) bant genişliği.
- Sıkıştırma Formatı: H.265+ / H.265 / H.264+ / H.264 bant genişliği ve depolama tasarruflu video kodlama.

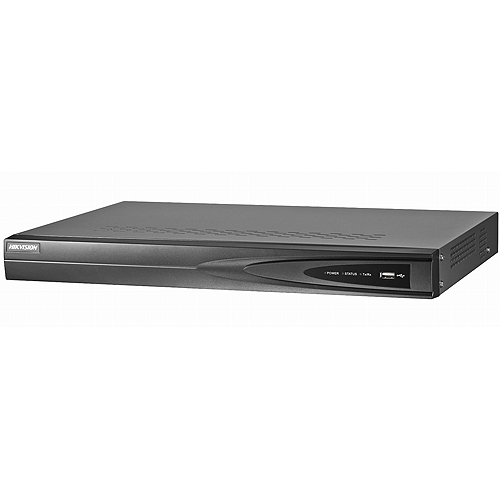

16-ch 1U 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Motion Detection 2.0
- Human/Vehicle Analysis4-ch
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 10 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight≤ 1 kg (without HDD, 2.2 lb.)
