8 Kanal NVR (2 SATA, H.265+, PoE)
H.265/H.265+/H.264/H.264+/MPEG4, 8MP’e kadar çözünürlük desteği, Çift yönlü ses desteği, Kayıt/izleme bant genişliği: 80Mbps/80Mbps, 1xHDMI (4K desteği), 1xVGA(FHD), 1xSes çıkışı, 2xSATA (~6TB), 1xRJ45, 2xUSB2.0, 8 x PoE arayüz (80W), 220VAC

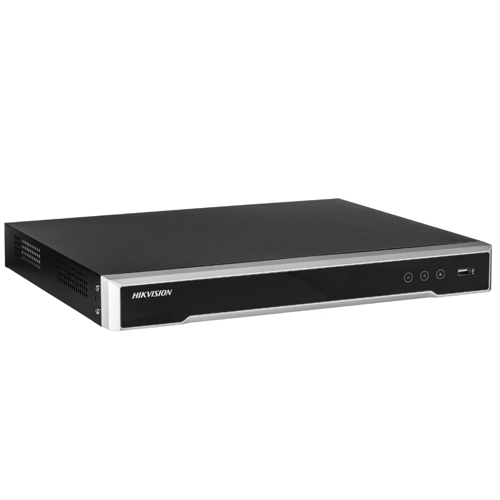

8-ch 1U 8 PoE 4K NVR
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 80 Mbps incoming bandwidth
- Motion Detection : 2.0
- Human/Vehicle Analysis : 4
- Video and Audio
- IP Video Input : 8-ch
- HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Incoming Bandwidth : 80 Mbps
- Outgoing Bandwidth : 80 Mbps
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding Format : H.265+,H.265,H.264+,H.264
- Decoding Capability : 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous playback : 8-ch
- Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface : 8-ch
- Power : ≤ 80W
- Standard : IEEE 802.3 af/at
- Auxiliary Interface
- SATA : 2
- Capacity : Up to 8TB capacity for each disk
- USB Interface : 2 × USB 2.0
- General
- Power Supply : 48V| ,2.5A MAX
- Consumption : ≤ 15W
- Working Temperature : -10 to +55º C (+14 to +131º F)
- Working Humidity : 10 to 90 %
- Chassis : 1U chassis
- Dimension (W × D × H) : 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
- Weight : ≤ 2.6 kg (5.7 lb)
