- Dahili PoE Desteği: 8 adet dahili PoE portu sayesinde kameraları ek adaptör/switch kullanmadan doğrudan NVR üzerinden besler (Toplam 75W PoE bütçesi).
- Kasa Yapısı: /M uzantısı cihazın Metal Kasa yapısına sahip olduğunu ifade eder.
- Kamera Çözünürlük Desteği: 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p kayıt ve canlı izleme desteği.
- Bant Genişliği: 60 Mbps Gelen (Giriş) / 60 Mbps Giden (Çıkış) bant genişliği.
- Sıkıştırma Formatı: H.265+ / H.265 / H.264+ / H.264 bant genişliği ve depolama tasarruflu video kodlama.

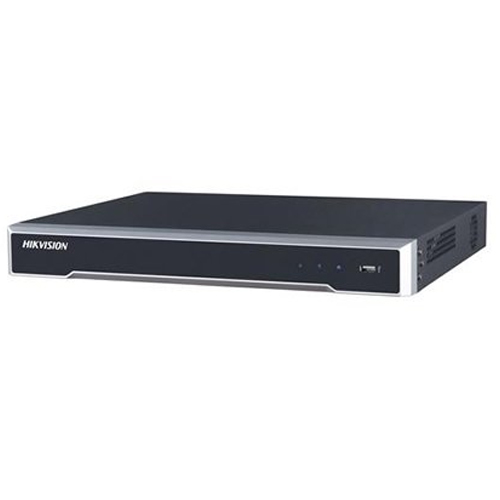

16-ch 1U 4K NVR
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Compatible with third-party network cameras
- Decoding
- Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
- Video resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback : 16-ch
- Capability : 1-ch @ 8 MP / 4-ch @ 1080p
- Network
- Incoming/outgoing bandwidth : 80 Mbps ,160 Mbps
- External interface
- Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB interface : 2 × USB 2.0
- General
- Power supply : 12 VDC,≤ 40W
- Consumption (without HDD) : ≤ 15W
- Working temperature : -10 to +55º C (+14 to +131º F)
- Working humidity : 10 to 90 %
- Dimensions (W × D × H) : 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
- Weight (without hard disk) : ≤ 1.8 kg (4.0 lb)
- Chassis : 1U chassis
- Video/Audio input
- IP video input : 16-ch,Up to 8 MP resolution
- Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Video/Audio output
- VGA output : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI output : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Audio output : 1-ch, RCA (Linear, 1 KΩ)
- Network management
- Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Hard disk
- SATA : 2 SATA interfaces
- Capacity : Up to 8TB capacity for each disk
