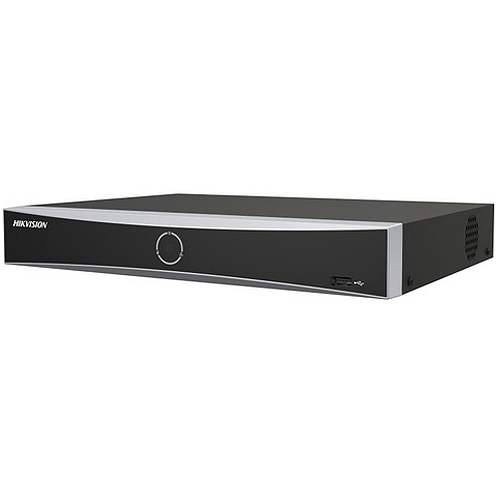

16-ch 1U K Series AcuSense 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Specification
- Intelligent Analytics
- AI by Device : Facial recognition, perimeter protection, motion detection 2.0
- AI by Camera : Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection and Analytics : Face picture comparison, human face capture, face picture search
- Face Picture Library : Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 73 MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance : 1-ch, 4 MP;1-ch, 8 MP
- Face Picture Comparison : 2-ch;4-ch
- Motion Detection 2.0
- By Device : 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera : All channels
- Perimeter Protection
- By Device : 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera : All channels
- Video and Audio
- IP Video Input : 16-ch
- Incoming Bandwidth : 160 Mbps
- Outgoing Bandwidth : 80 Mbps
- HDMI Output : 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode : HDMI/VGA independent output
- CVBS Output : N/A
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding Format : H.265/H.265+/H.264+/H.264
- Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback : 16-ch
- Decoding Capability : AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream Type : Video, Video & Audio
- Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection : 128
- API : ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser : IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface : 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 10 TB capacity for each HDD
- USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out : N/A
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply : 12 VDC, 1.5 A
- Consumption : ≤ 10 W (without HDD)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
- Weight : ≤ 1 kg (without HDD, 2.2 lb.)
- Certification
- FCC : N/A;Part 15 Subpart B, ANSI C63.4-2014
- CE : EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification : CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
