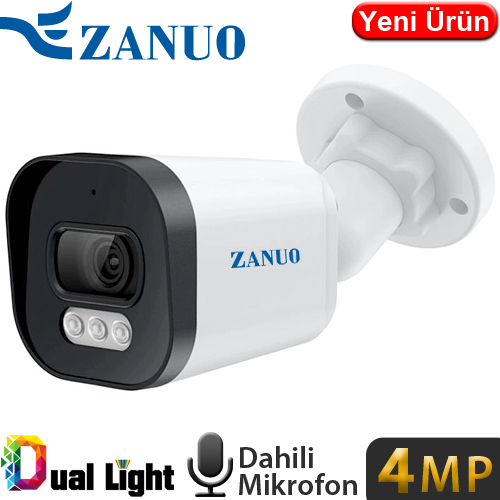

4 MP 1/2.9″ CMOS Sensor
Support H.264, H.265
IR Light: 30 m, White Light: 30m
Built in Mic & SD Card
2.8mm fixed lens
12 VDC/PoE power supply
IP67 protection
| Camera | |
| Image Sensor | 1/2.9” CMOS |
| Max. Resolution | 4MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto(1/25s ~ 1/1000) |
| Min. Illumination | 0.01 Lux @F2.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR Light: 30 m, White Light: 30m |
| Illuminator Control | Auto; Manual |
| Lens | |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Iris Type | Auto |
| Video | |
| Compression | H.264H; H.264M; H.264B; H.265 |
| Video Frame Rate | Main Stream: 2MP (1 fps–20 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) | |
| Stream Capability | 2 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 1792Kbps~4Mbps |
| H.265: 1792Kbps~4Mbps | |
| Day/Night | Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Mic | Yes |
| Alarm | |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP |
| Interoperability | ONVIF; CGI |
| Storage | SD Card |
| Browser | IE: IE8 and later |
| Management Software | PC Software(SVMS) |
| Mobile Client | IOS; Android |
| Power | |
| Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Max. 3W |
| Environment | |
| Operating Conditions | –20°C to +60°C /Less than 95% RH |
| Storage Conditions | –30°C to +60°C |
| Protection Grade | IP67 |
| Structure | |
| Casing | Inner core: Metal; Cover: Plastic |
| Dimensions | Φ125mm×120mm |
| Net Weight | 390g |
