DAHUA (NVR608H-32-XI) 32 KANAL H265 8x16GB 4xHDMI 2xVGA 4xUSB RS232 RS485 2xRJ45 NVR KAYIT CİHAZI

DAHUA (NVR608H-32-XI) 32 KANAL H265 8x16GB 4xHDMI 2xVGA 4xUSB RS232 RS485 2xRJ45 NVR KAYIT CİHAZI

Marka Dahua

Teknik Özellikler

Kategori NVR Kayıt Cihazı
HDD 8x16 TB HDD
Disk Sayısı 8
Kanal Sayısı 32
Ethernet Arayüzü 10/100/1000 Mbps
PoE Yok
HDMI Bağlantısı 4
Video Girişi IP
VGA Bağlantısı 2
Yapay Zeka Var
Genel Stok 1
Fiyat
Satış Fiyatı $ 1.976,0097.250,82 TL€ 1.761,46 + KDV
Havale Fiyatı $ 1.916,7294.333,30 TL€ 1.708,61 + KDV

1 adet stokta

32 Kanal H.265 NVR (8x16TB SATA)
İzleme/Kayıt Bant Genişliği: 1024Mbps/1024 Mbps
32 MP’ye kadar çözünürlük, RAID 0/1/5/6/10, Hot Stanby(Yedekli Çalışma, N+M), 4Kanal@16MP/32Kanal@1080p Kod Çözü
mleme(Decoding)
Çift Yönlü Konuşma, P2P, IVS, Yüz Algılama,SMD, Yüz Tanıma, Kişi Sayma, Isı Haritası destekli kameralar ile uyumlu
Fisheye Kameraları(Bölümleme), POS Cihazları ile uyumlu
4 HDMI, 2 VGA, 4 USB, RS232(PC ve Klavye), RS485(PTZ), Alarm Giriş/Çıkış: 16/8, 2 RJ45 port(10/100/1000/2500Mbps)

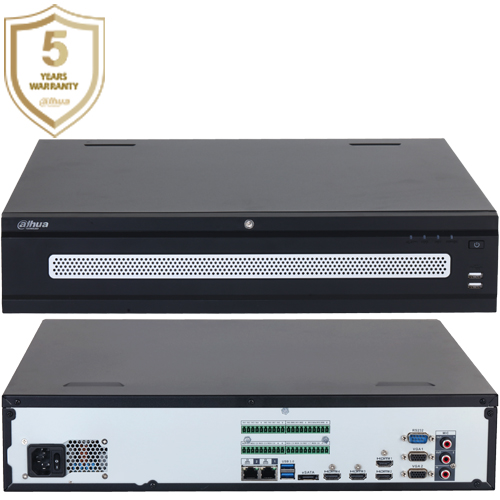

NVR608H-32-XI

32 Channels 2U 8HDDs WizMind Network Video Recorder

> 32-channel 1080p self-adaptive decoding capability.
> Max. 1024/1024/800Mbps incoming/recording/outgoing bandwidth.
> Supports N+M cluster.
> Support Raid0/1/5/6/10.
> Drawer-like chassis design allows for HDD hot swapping.
> AI by recorder: 4-channel face detection and recognition; 8-channel metadata; 24-channel perimeter protection; 32-channel SMD Plus.
> AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI
AI by Recorder Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus
AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 24 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) 32 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 4 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) 32 channels
Face Recognition
Face Database Capacity Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type,
credential No., countries & regions and state can be added
to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 1. 20 channels FD (by camera) + FR (by recorder), image stream: 20 face images/s
2. 4 channels FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) 32 channels
SMD Plus
SMD Plus by Recorder 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 32 channels
Video Metadata
Metadata Performance of AI by Recorder (Number of Channels) 8 channels
Metadata Performance of AI by Camera (Number of Channels) 32 channels
Human Attributes Top color, top type, hat, bag, age, gender and umbrella
Motor Vehicle Attributes License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling,
Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet.
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels) 32 channels
License Plate Database Capacity Blocklist and allowlist: 20,000
Audio and Video
Access Channel 32 channels
Network Bandwidth AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing
AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing
Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
Decoding Capability 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 8-channel 8 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps; 72-channel 720P@30 fps 160-channel D1@30 fps
Video Output 2-channel VGA, 4-channel HDMI video output.
Simultaneous mode:
max. resolution of VGA1 and VGA2 is 1080p,
max. resolution of HDMI1 and HDMI2 is 4K
max. resolution of HDMI3 is 8K
max. resolution of HDMI4 is1080p
Heterogeneous mode:
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2
max. resolution of VGA1 and VGA2 is 1080p,
max. resolution of HDMI1, HDMI2 and HDMI3 is 4K
max. resolution of HDMI4 is 1080p
Multi-screen Display Main screen: 1/4/8/9/16/25/36
Sub screen: 1/4/8/9/16/25/36
Third-party Camera Access ONVIF; RTSP; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI
Mobile Phone Access iOS; Android
Interoperability ONVIF (Profile S/profile T/Profile G); CGI; SDK
Browser Chrome
IE 9 or later
Firefox
Network Mode Multi-address mode, load balance, fault tolerance and other network port binding modes
Recording Playback
Multi-channel Playback Up to 16 channels
Record Mode Manual; alarm; motion detection; scheduled
Backup Method Portable hard drive, eSATA disk, burner, USB device and network
Playback Mode 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
Storage
Disk Group Yes
RAID RAID 0/1/5/6/10
Hot Swapping Yes
Alarm
General Alarm Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan
Intelligent Alarm Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; buzzer; log, preset; email
Port
Audio Input 1-channel RCA
Audio Output 2-channel RCA
Alarm Input 16 channels
Alarm Output 8 channels
HDD Interface 8 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.
eSATA 1
RS-232 1
RS-485 1 × A/B
USB 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI 4
VGA 2
Network Port 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45)
General
Power Supply 100–240 VAC, 50/60 Hz
Power Consumption <18 W (without HDD)
Net Weight 6.4 kg (14.11 lb) (without HDD)
Gross Weight 10.35 kg (22.82 lb) (without HDD)
Product Dimensions 444.0 mm × 456.6 mm x 95.0 mm (17.48″ × 17.98″ × 3.74″) (W × D × H)
Packaging Dimensions 570.0 mm × 570.0 mm × 226.0 mm (22.44″ × 22.44″ × 8.90″) (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014+A11:2017
